2422/10.12.160.230
Description
- Nut Series 2422 with end cap ball return, Flange single nut with 4-point-contact, with standard synthetic wipers on both ends
- Nut shape design for assembly by flange
- Multiple start ball thread, ground execution according to accuracy class P1 - P5
- Miniature ball screws also available with axial play

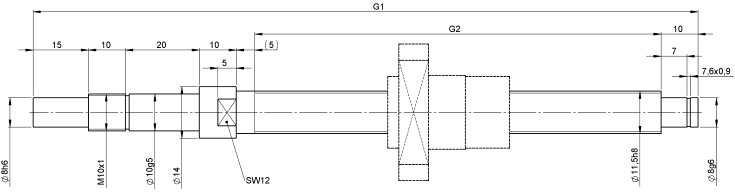

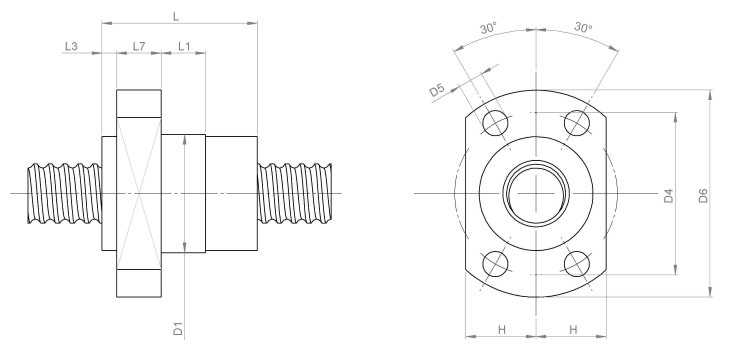

Technical Data and Dimensions
-
Series
-
2422
-
Pilot Length
-
[mm]
- L1
-
10
-
Nominal diameter
-
[mm]
- dN
-
12
-
Accuracy
-
P
-
Lead
-
[mm]
- P
-
10
-
Preload/backlash free/with backlash
-
backlash free
-
Shaft style
-
B
-
Nut length
-
[mm]
- L
-
39
-
Nominal stroke
-
[mm]
-
100
-
Wiper extension
-
[mm]
- L3
-
9
-
Overall length
-
[mm]
- G1
-
230
-
Flange thickness
-
[mm]
- L7
-
8
-
Thread length
-
[mm]
- G2
-
160
-
Dynamic load capacity
-
[kN]
- Ca
-
8,50
-
Ball circles
- i
-
3+3
-
Static load capacity
-
[kN]
- C0a
-
11,00
-
Ball diameter
-
[mm]
- dW
-
2,5
-
Pilot diameter
-
[mm]
- D1
-
24
-
DN-value
-
160000
-
Pilot diameter tolerance
-
[mm]
-
g6
-
No. of starts
-
2
-
Bolt circle diameter
-
[mm]
- D4
-
32
-
Friction torque FROM
-
[Ncm]
-
3,0
-
Flange diameter
-
[mm]
- D6
-
40
-
Friction torque TO
-
[Ncm]
-
3,0
-
Flange flat dimension
-
[mm]
- H
-
13
