1414/5.25.3,5.5
Description

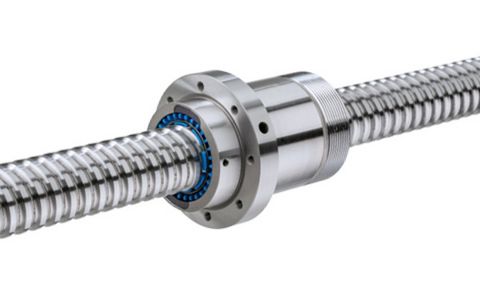

- Nut Series 1414 with internal ball return, Flange single nut with 4-point-contact, with standard wipers on both ends
- Nut shape design for direct assembly of angular bearing, locknut and pulley
- Single start ball thread, ground execution according to accuracy class P1 - P5
Technical Data and Dimensions
- Series
- 1414
- Flange thickness
- [mm]
- L7
- 10
- Nominal diameter
- [mm]
- dN
- 25
- Thread length
- [mm]
- L2
- 20
- Lead
- [mm]
- P
- 5
- Dynamic load capacity
- [kN]
- Ca
- 21,20
- Ball circles
- i
- 1x5
- Static load capacity
- [kN]
- C0a
- 35,90
- Ball diameter
- [mm]
- dW
- 3,5
- DN-value
- 120000
- Additional wiper extensions for combination wipers
- [mm]
- LA
- 9
- No. of starts
- 1
- Pilot Length
- [mm]
- L1
- 34
- Stiffness
- [N/µm]
- Rnu,ar
- 430
- Pilot diameter tolerance
- [mm]
- h5
- Pilot diameter
- [mm]
- D1
- 40
- Thread diameter
- [mm]
- D2
- M40x1,5
- Bolt circle diameter
- [mm]
- D4
- 51
- Diameter for wiper extension
- [mm]
- D3
- 40
- Max. preload
- [kN]
- 1,696
- Flange hole diameter
- D5
- M6
- Nut length
- [mm]
- L
- 72
- Flange diameter
- [mm]
- D6
- 62
- Wiper extension
- [mm]
- L3
- 7
