1412/1.3.44.85
Description
- Nut Series 1412 with internal ball return, Flange single nut with 4-point-contact with standard synthetic wipers on both ends
- Nut shape design for assembly by flange
- Single start ball thread, ground execution according to accuracy class P1 - P5
- Miniature ball screws also available with axial play
Technical Data and Dimensions
-
Series
-
1412
-
Accuracy
-
P
-
Nominal diameter
-
[mm]
- dN
-
3
-
Preload/backlash free/with backlash
-
backlash free
-
Lead
-
[mm]
- P
-
1
-
Nut length
-
[mm]
- L
-
15
-

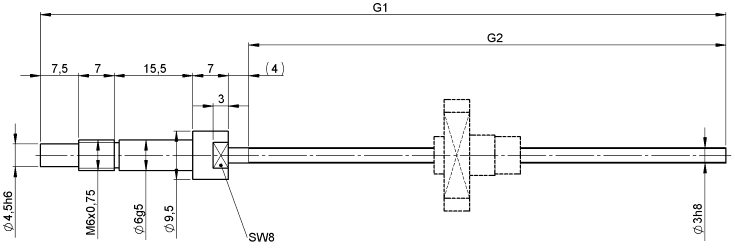

Shaft style
-
B
-
Flange thickness
-
[mm]
- L7
-
5
-
Nominal stroke
-
[mm]
-
20
-
Dynamic load capacity
-
[kN]
- Ca
-
0,24
-
Overall length
-
[mm]
- G1
-
85
-
Static load capacity
-
[kN]
- C0a
-
0,25
-
Thread length
-
[mm]
- G2
-
44
-
Pilot diameter
-
[mm]
- D1
-
8
-
Ball circles
- i
-
1x2
-
Pilot diameter tolerance
-
[mm]
-
g6
-
Ball diameter
-
[mm]
- dW
-
0,8
-
Bolt circle diameter
-
[mm]
- D4
-
15
-
DN-value
-
120000
-
Flange hole diameter
- D5
-
3,2
-
No. of starts
-
1
-
Flange diameter
-
[mm]
- D6
-
22
-
Friction torque FROM
-
[Ncm]
-
1,0
-
Flange flat dimension
-
[mm]
- H
-
7
-
Friction torque TO
-
[Ncm]
-
1,0
