Lead Error Fluctuation Over Entire Travel

Technical Tip

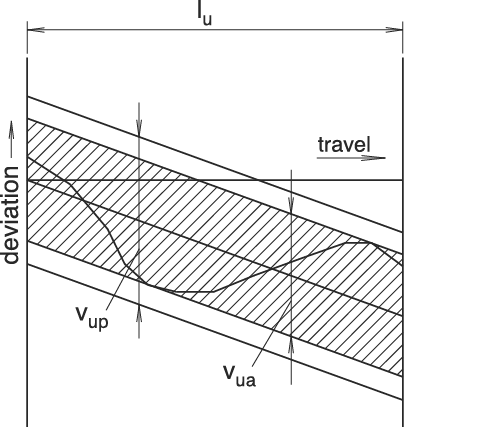

The fluctuation of the lead error is defined by two lines parallel to the line representing the average lead error, which include the entire lead error graph.

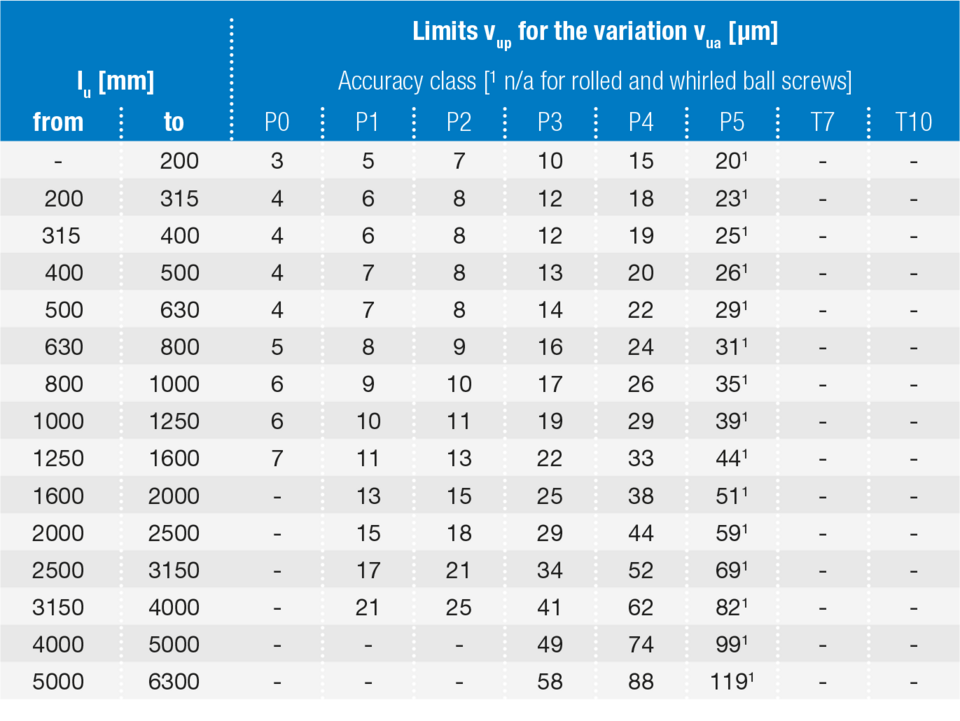

The lead error fluctuation is applicable to precision ground positioning screws in accuracy classes 0 - 5 only. It does not apply to general purpose screws which are typically either rolled or whirled in classes 5 - 10.
